가공가이드

믿음과 신뢰로 보답하는 (주)대현하이테크, 언제나 고객의 가족같은 마음으로 서비스 합니다.

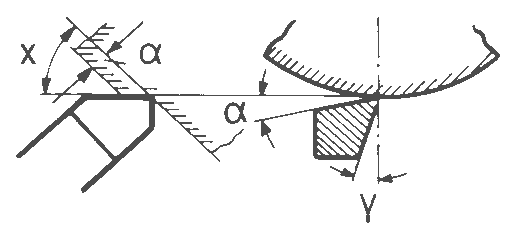

선반가공(Turning)	α	γ	χ	ν	s
PE/PP	6-10	0-5	45-60	250-500	0.1-0.5
POM	6-8	0-5	45-60	300-600	0.1-0.4
ABS	5-15	25-30	15	200-500	0.2-0.5
PVC	8-10	0-5	50-60	200-750	0.3-0.5
PET	5-15	0-15	45-60	200-500	0.1-0.5
PMMA	5-10	0-4	15	200-300	0.1-0.2
PVDF	5-12	5-15	10	150-500	0.1-0.3
ECTFE	6-8	0-5	45-60	250-500	0.1-0.5
PC/PPE	5-15	6-8	45-60	200-350	0.1-0.5
PEEK	5-10	5-10	45-60	200-300	0.2-0.4
PSU	5-10	10	45-60	150-400	0.2-0.3
PES	5-10	10	45-60	150-400	0.2-0.3
PEI	5-10	10	45-60	150-400	0.2-0.3
GF mod	6-8	2-8	45-60	150-200	0.1-0.5

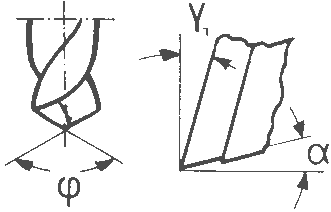

드릴가공(Drilling)	α	γ	Φ	ν	s
PE/PP	5-15	10-20	60-90	50-150	0.1-0.3
POM	5-10	5-30	90	50-200	0.1-0.3
ABS	8-12	10-30	60-90	50-200	0.2-0.3
PVC	5-10	3-5	60-100	30-120	0.1-0.5
PET	ca.16	25-30	110	50-100	0.1-0.3
PMMA	3-8	0-4	60-90	20-60	0.1-0.5
PVDF	10-16	5-20	110-130	150-300	0.1-0.3
ECTFE	5-15	10-20	60-90	50-150	0.1-0.3
PC/PPE	8-10	10-20	90	50-100	0.1-0.3
PEEK	5-15	10-15	118	70-100	0.07-0.2
PSU	8-15	10-20	60-90	50-100	0.1-0.4
PES	8-15	10-20	60-90	50-100	0.1-0.4
PEI	8-15	10-20	60-90	50-100	0.1-0.4
GF mod	6	5-10	120	80-100	0.1-0.3

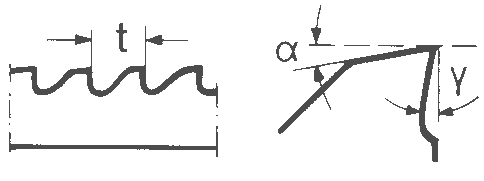

벨트 톱 절단(Belt saw)	α	γ	ν	t
PE/PP	20-30	2-5	500	3-8
POM	20-30	0-5	500-800	2-5
ABS	15-30	0-5	300	2-8
PVC	30-40	0-5	1200	3
PET	30-40	0-5	bis3000	2-8
PMMA	30-40	0-5	1200	3
PVDF	20-30	5-8	300-500	2-5
ECTFE	20-30	2-5	500	3-8
PC/PPE	15-30	5-8	300-500	2-8
PEEK	15-30	0-5	500-800	3-5
PSU	15-30	0-4	500	2-5
PES	15-30	0-4	500	2-5
PEI	15-30	0-4	500	2-5
GF mod	15-30	10-15	200-300	3-5

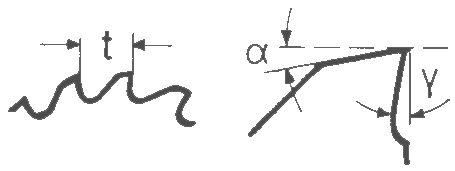

원형 톱 절단(Circular saw)	α	γ	ν	t
PE/PP	20-30	6-10	2000	3-8
POM	5-10	0-10	1000-2500	2-5
ABS	5-10	0-5	1000	2-5
PVC	5-10	0-5	3000-4000	3-5
PET	10-15	0-15	bis3000	2-5
PMMA	5-10	0-5	1500-2000	3-5
PVDF	5-10	0-10	1000-2500	2-5
ECTFE	20-30	6-10	2000	3-8
PC/PPE	15-30	5-8	1800-2500	2-8
PEEK	10-15	0-15	1800-2500	2-5
PSU	10-15	0-15	2000	2-5
PES	10-15	0-15	2000	2-5
PEI	10-15	0-15	2000	2-5
GF mod	15-30	10-15	500-1500	3-5
